Taurus 7-12 Roller Shutter Automation

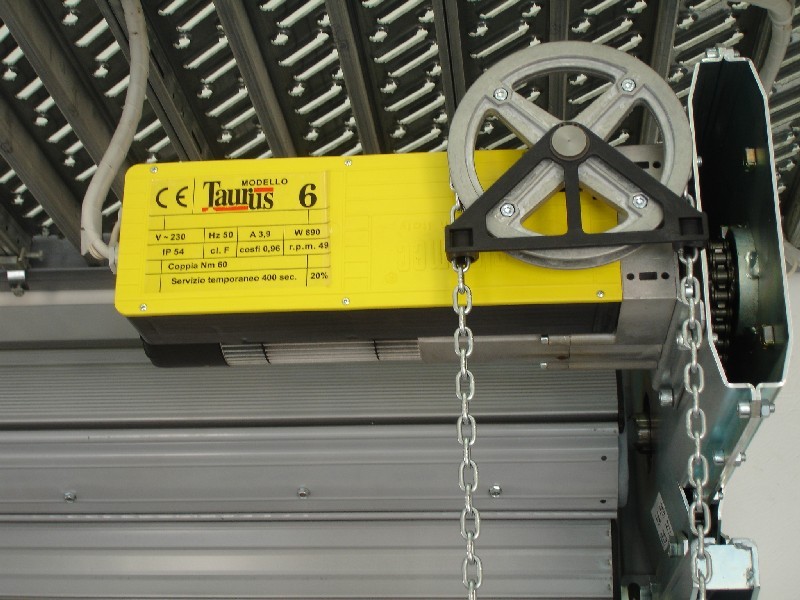

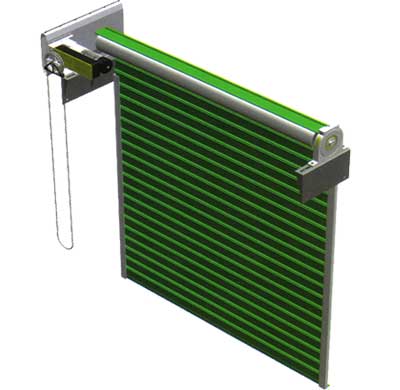

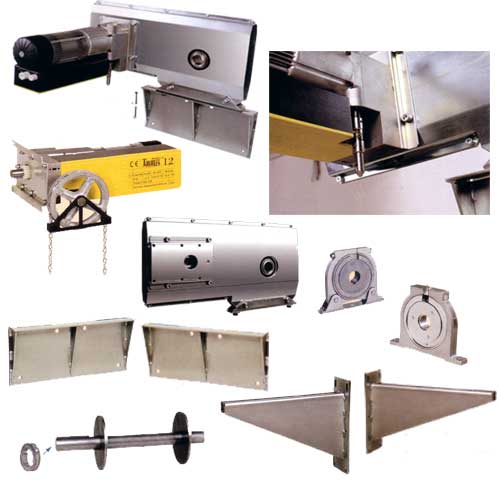

TAURUS, the flange-mounted motor made by Elsamec, is suitable for rolling shutters without compensation springs, for residential and industrial use. The motor is placed extemal, and parallel to the axle, thus reducing to the minimum the space on the side: this factor facilitates the installation and any eventual maintenance which may be needed afterwards.                   Taurus can pull very large shutters, with weighis up to 1000 kgs and can be used in very many ways: the lifting capacity varies according to trasmission gear ratio. The range of models covers several applications: the model TAURUS 7-M is a single-phased motor designed  for high-frequent use with 70 Nm torque with trasmission gear 1:5; the model TAURUS 7 is a three-phased motor designed for high-frequent use with 70 Nm torque with trasmission gear 1:7; the model TAURUS 12 three-phased is designed for heavy industrial use and has a torque of 120 Nm with trasmission gear 1:7

TAURUS.pdf
